Receiving CoreMidi over a Network

IPhones, iPods and iPads use CORE Midi. This is a midi signal sent on wifi. Many midi applications are available at the AppStore that can send midi, opening an impressive range of possible controllers.

Control and TouchOSC in particular, present in Android ….

• Control
• TouchOSC

To receive the Midi protocol issued from CORE Midi, you will have to install Bonjour and rtpMIDI, which are both free software programs.

Bonjour allows you to network machines without using IP addressing: the machine and its name are displayed on a small network, you accept and voila.

As simple as Hello …

However, the structure of Bonjour needs a specific driver, and this is where we will use rtpMIDI, as it will rip the received signal on a midi port that it will create.

rtpMIDI launches itself at windows startup, once you have it installed. rtpMIDI is extremely easy to use, robust and reliable.

Installing In Windows

Download:

• Bonjour Bonjour
• Plus the Driver RTPMidi développé par Tobias Erichsen
• Install Bonjour, restart Windows
• install RTPmidi, restart Windows

Settings

We will use the simplest method to set up a session.

• Start RTPmidi.

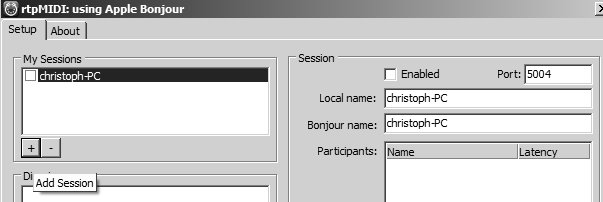

• Create a new session by clicking the small [+]
• By default this new session is referred to by the name of your machine

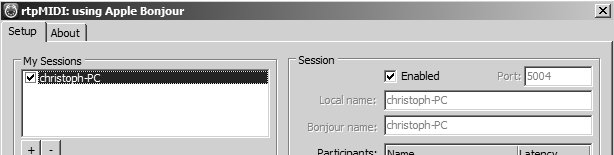

• Confirm the opening of the session by clicking the box in front of the connection that you created

• With your iPhone/IPad, start a free application, type Knob

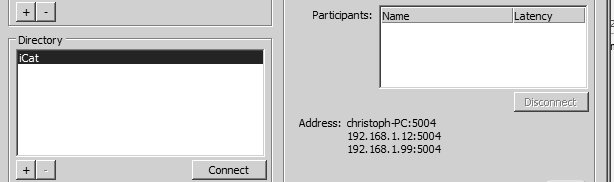

• After a few seconds, you will see the name appear on your device. This capture by my iPod is called iCAT.

• Select the device, click [Connect].

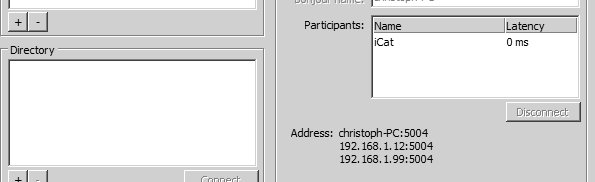

• The device is added to a list of participants in the session

• It is through this menu on the right that you can add or remove participants of Bonjour from your session, allowing you to work with multiple devices and software.

• To remove a device, click it to make it[Deconnect]
